ESP32 Walkie talkies

Project type

Embedded system design, Digital Signal Processing

Date

Spring 2026

I designed and built a pair of ESP32-based walkie-talkies from the ground up to create a functional short-range, half-duplex voice communication system. The project combines embedded hardware, digital audio processing, wireless communication, and custom circuitry.

The complete construction on my pair of walkie talkies. Click on this image to view the project repository link.

I designed and 3D printed the cases that house the breadboards. The front is open, with the intent being to show the physical wiring. The potentiometer on top is a volume knob, and the buttons on the front include a push button used for push-to-talk and a 5-way switch used for menu navigation.

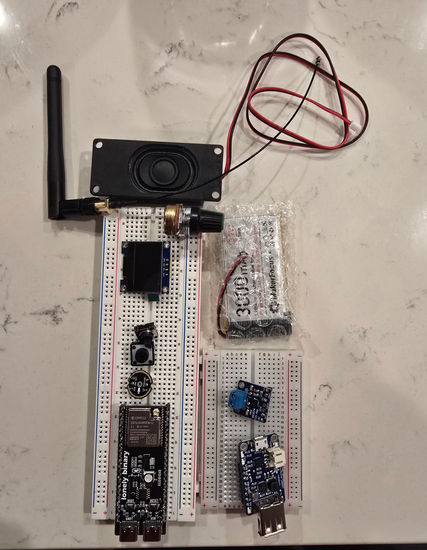

General peripheral layout during brainstorming.

The layout of my devices changed overtime. Here we see a closer approximation of what I would finally settle on. See that the microcontroller, user inputs (such as the mic and push to talk) are front facing. The battery, amplifier, and battery charger circuit are all located on the back side.

The wiring skeleton of the pair of walkie talkies.

The caseless core of the walkie talkie system. Most connections were done by this point. see how the backside has now been properly attached.

Device front side pin layout.

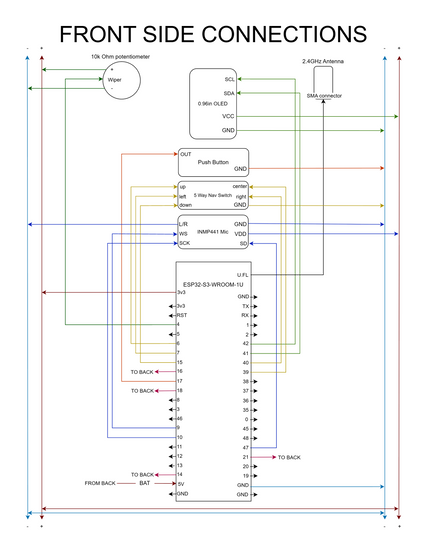

A pinout diagram of the ESP32 walkie talkie's front side.

Device back side pin layout.

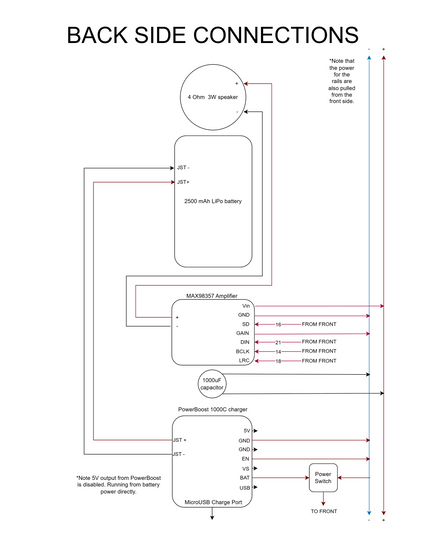

A pinout diagram of the ESP32 walkie talkie's front side.

A Walkie Talkie pair sound test.

An audio test I ran once I was content with the design. Listen to the walkie talkies turn on, my initial proximity to both of them, and then how I walk further away upstairs. Finally, my steps returning down the stairs can be heard as I bring the pair close together again.
